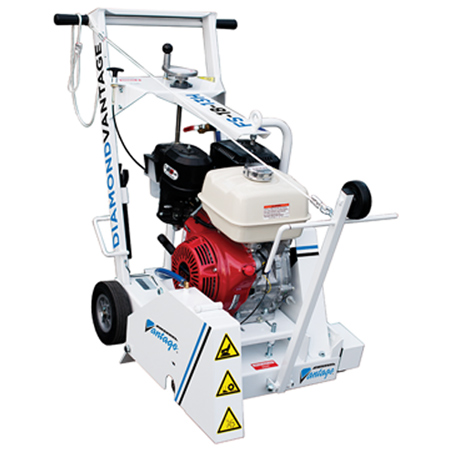

FS200-13G
FS200-13G
flat saw
  • Diamond Vantage Walk Behind Saws, FS200-13G, are built from the ground up to provide years of reliable cutting. These saws will cut concrete and asphalt with little to no vibration because of their heavygauge steel frames, rugged shafts and bearing assemblies.
  • Precision machined arbor shafts
  • Multiple-belt power transfer system
  • Superior rigidity for smooth, clean, straight cuts
  • Heavy-Duty 7-gauge steel construction
  • Large screw-type depth control locks for consistent cutting depth
  • Part #: FS200-13G
  • + specifications >
    Blade Capacity 18"
    Weight 254 lbs.
    Horse Power 13 HP
    Dimensions 49"L x 27"W x 40"H
    Max Cut Depth 6-3/4"
    Motor Honda
DV400-44D
DV400-44D*
flat saw
  • 44HP liquid-cooled Kubota turbo diesel engine
  • Powerful enough to compensate for altitude changes
  • Heavy-duty 1/4" thick fully welded steel frame
  • Self propelled
  • Fully enclosed differential
  • Optimally placed panel controls for easy operation
  • Direct spindle or 4-speed gear box with neutral
  • 18" blade guard standard. Additional blade guards available.
  • Rear Pivot or Front Pivot
  • Part #: DV400-44D
    * Additional frame sizes & engines available. All gas and diesel saws 400 series and higher can be front or rear pivot. Electric saws and 100-350 series gas, hydraulic and propane saws are front pivot only.
  • + specifications >
    Blade Capacity 14"-36"
    Fuel Capacity 6.5 gallons
    Weight 1,100 lbs.
    Height 45"
    Width 32" with quick detach
    Length 47"
    Drive Speed 0-240 FPM
    Max Cut Depth 16"
    Depth Control Mechanical
    Spindle 1 7/16" with tapered roller bearings
    Arbor Size 1"
    Motor Manufacturer Kubota - 3 year warranty
    Number of Strokes 4
DV600-66D
DV600-66D*
flat saw
  • 66HP liquid-cooled Kubota turbo diesel engine
  • Glow plugged
  • Smooth running performance
  • Heavy-duty steel frame
  • Self-propelled
  • Direct spindle drive or 4-speed gear box
  • 18" blade guard standard. Additional blade guards available.
  • Rear Pivot or Front Pivot
  • Part #: DV600-66D
    * Additional frame sizes & engines available. All gas and diesel saws 400 series and higher can be front or rear pivot. Electric saws and 100-350 series gas, hydraulic and propane saws are front pivot only.
  • + specifications >
    Blade Capacity 14"-48"
    Fuel Capacity 8 gallons
    Weight 1,650 lbs.
    Height 45"
    Width 32.5" with a quick detach
    Length 54"
    Drive Speed 0-240 FPM
    Max Cut Depth 21.5"
    Depth Control Mechanical
    Spindle 1 11/16" with tapered roller bearings
    Arbor Size 1"
    Motor Manufacturer Kubota - 3 year warranty
    Number of Strokes 4
DV400SS-30E
DV400-30E*
flat saw
  • 30HP Baldor motor
  • 480V or 220V Electric
  • Fully welded ."thick chassis
  • Fully welded 3/16" thick Frame Console
  • Direct Spindle or 4-speed gear box
  • 18" blade guard standard. Additional blade guards available.
  • Part #: DV400SS-30E
    * Additional frame sizes & engines available. All gas and diesel saws 400 series and higher can be front or rear pivot. Electric saws and 100-350 series gas, hydraulic and propane saws are front pivot only.
  • + specifications >
    Blade Capacity 14"-30"
    Voltage 220 3-Phase & 480 3-Phase
    Weight 1,150 lbs.
    Height 45"
    Width 31.5"
    Length 43.5"
    Drive Speed 200 FPM
    Max Cut Depth 13"
    Depth Control Hydraulic raise and lower
    Spindle 1.44" with tapered roller bearings
    Arbor Size 1"
    Motor Manufacturer Baldor, Warranty per manufacturer
DV400-50G
DV400-50G*
flat saw
  • 50HP Kubota gasoline engine
  • Compact frame, Easy to Move,
  • Fully enclosed differential with Gear & hydraulic powered drive
  • Fully welded ."thick chassis
  • Fully welded 3/16" thick Frame Console
  • Quick disconnect blade spindle style
  • Direct Spindle or 4-speed gear box
  • Part #: DV400-50G
    *Additional frame sizes & engines available. All gas and diesel saws 400 series and higher can be front or rear pivot. Electric saws and 100-350 series gas, hydraulic and propane saws are front pivot only.
  • + specifications >
    Blade Capacity 14"-36"
    Fuel Capacity 6.5 gallons
    Weight 1,140 lbs.
    Height 45"
    Width 31.5"
    Length 46"
    Drive Speed 0-240 FPM
    Max Cut Depth 16"
    Depth Control Hydraulic raise and lower
    Spindle 1.44" with tapered roller bearings
    Arbor Size 1"
    Motor Manufacturer Kubota - 3 year warranty
DV600EX-60D
DV600EX-65G*
flat saw
  • 60HP Kubota diesel engine
  • Deep cutting saw, easy to Move
  • Fully enclosed differential with gear & hydraulic powered drive
  • Fully welded 1/4" thick chassis
  • Fully welded 3/16" thick Frame Console
  • Quick disconnect blade spindle style
  • Direct Spindle or 4-speed gear box
  • Rear Pivot or Front Pivot
  • Part #: DV600EX-60D
    *Additional frame sizes & engines available. All gas and diesel saws 400 series and higher can be front or rear pivot. Electric saws and 100-350 series gas, hydraulic and propane saws are front pivot only.
  • + specifications >
    Blade Capacity 14"-48"
    Fuel Capacity 8 gallons
    Weight 1,500 lbs.
    Height 45"
    Width 36.5"
    Length 52"
    Drive Speed 0-240 FPM
    Max Cut Depth 21"
    Depth Control Hydraulic raise and lower
    Spindle 1.68" with tapered roller bearings
    Arbor Size 1"
    Motor Manufacturer Kubota - 3 year warranty

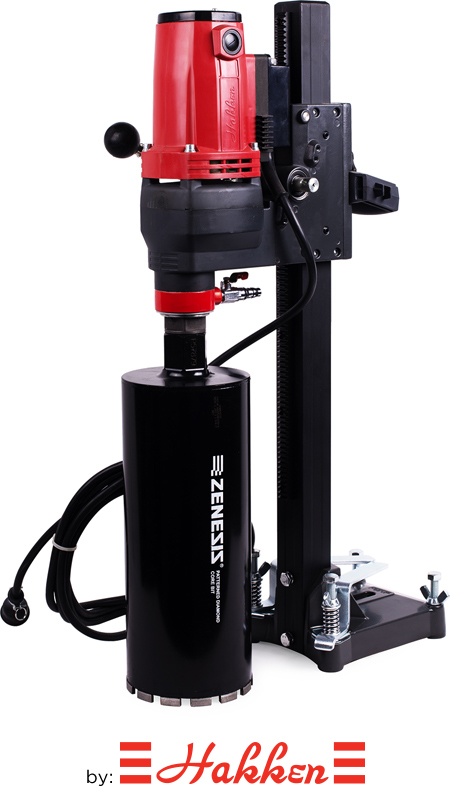

SMD08
SMD08
core drill
  • Spindle thread size 1 1/4"-7 (industry standard)
  • Motor comes with slip clutch that can be easily adjusted from outside the motor
  • 4 adjustable leveling screws for drilling uneven surfaces
  • Double insulated construction
  • Water valve swivels 360 degrees
  • Engineered for both vertical and horizontal drilling
  • Light weight drill is easy to carry and lift for wall drilling
  • Roller slide carriage provides smooth drilling with low friction
  • One-year limited warranty
  • + specifications >
    Power 115V, 15A drill motor
    Core Bit Capacity 8"
    Spindle Thread 1-1/4"-7
    Column Thickness 1-15/16"
    Stand Height 31-7/8"
    Carriage Travel 19-7/8"
    Anchor Base 7" W x 8-1/2" L
    Clutch Type Slip
    Speed 700 RPM (Single)
    Weight 49 lbs. (22.2 kg)
  • DUSTLESS CONNECTOR
  • Available for all sizes

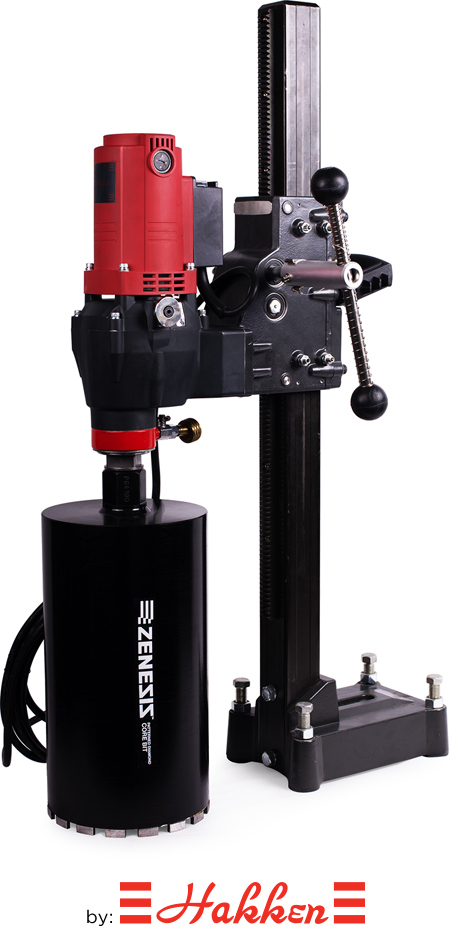

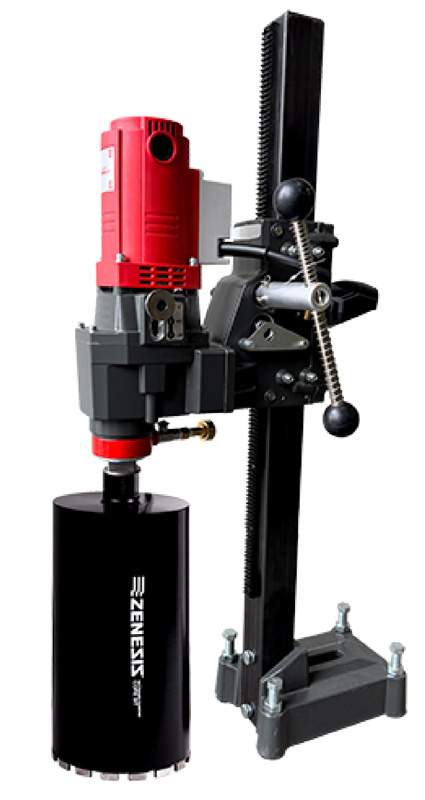

SMD12
SMD12
core drill
  • Spindle thread size 1 1/4"-7 (industry standard)
  • Motor comes with slip clutch that can be easily adjusted from outside the motor
  • 4 adjustable leveling screws for drilling uneven surfaces
  • Double insulated construction
  • Water valve swivels 360 degrees
  • Engineered for both vertical and horizontal drilling
  • Light weight drill is easy to carry and lift for wall drilling
  • Roller slide carriage provides smooth drilling with low friction
  • One-year limited warranty
  • + specifications >
    Power 115V, 20A drill motor
    Core Bit Capacity 12"
    Spindle Thread 1-1/4"-7
    Column Thickness 2-5/16"
    Stand Height 39"-3/8"
    Carriage Travel 24-3/8"
    Anchor Base 7.5" W x 10" L
    Clutch Type Slip
    Speed 400/950 RPM (Dual)
    Weight 68 lbs. (30.8 kg)
  • DUSTLESS CONNECTOR
  • Available for all sizes

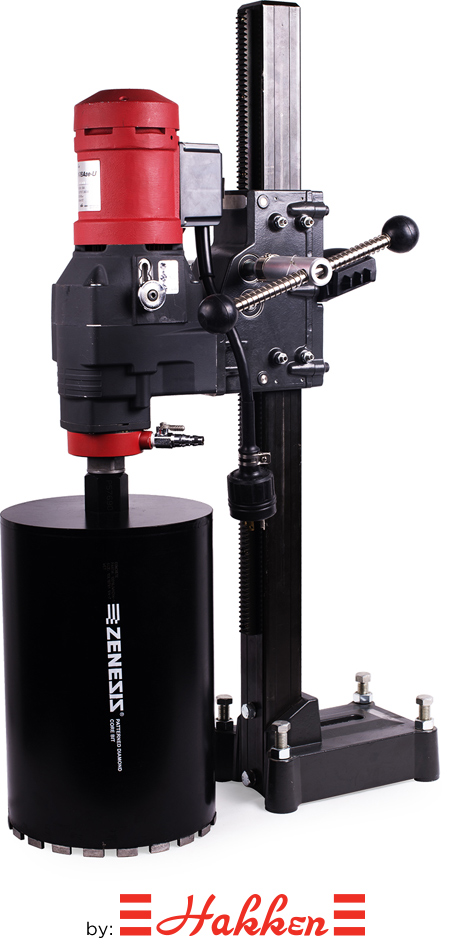

SMD16
SMD16
core drill
  • Spindle thread size 1 1/4"-7 (industry standard)
  • Motor comes with slip clutch that can be easily adjusted from outside the motor
  • 4 adjustable leveling screws for drilling uneven surfaces
  • Double insulated construction
  • Water valve swivels 360 degrees
  • Engineered for both vertical and horizontal drilling
  • Light weight drill is easy to carry and lift for wall drilling
  • Roller slide carriage provides smooth drilling with low friction
  • One-year limited warranty
  • + specifications >
    Power 120V
    Rated Current 30A
    Max Output 6.4kw (8.6HP)
    Max Bit Capacity 16"
    Spindle Thread 1-1/4"-7
    Column Thickness 2-5/16"
    Stand Height 39-3/8"
    Carriage Travel 24-3/8"
    Anchor Base 7.5" W x 10" L
    Clutch Type Slip
    Speed+L2 300/800/1400 RPM (No Load)
    Weight 76 lbs. (34.5kg)
  • DUSTLESS CONNECTOR
  • Available for all sizes
SMD HAKKEN STANDS

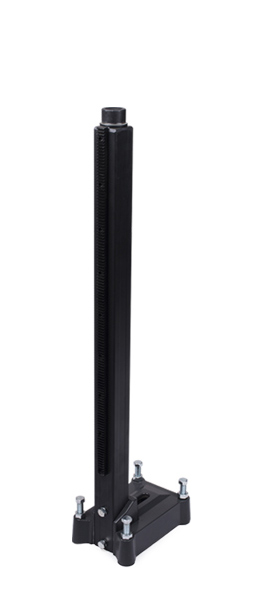

STANDARD
  • STANDARD
  • lightweight
    standard pole base

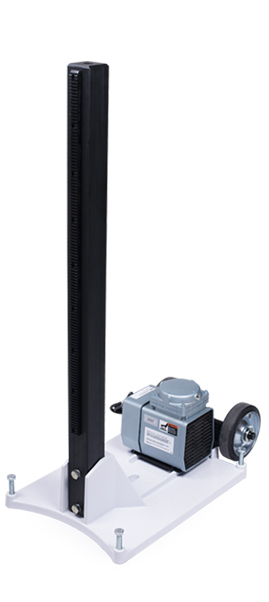

STANDARD with Large Vacuum Base
  • STANDARD with
    Large Vacuum Base
  • Including vacuum/anchor
    combination pad with
    wheels for mobility

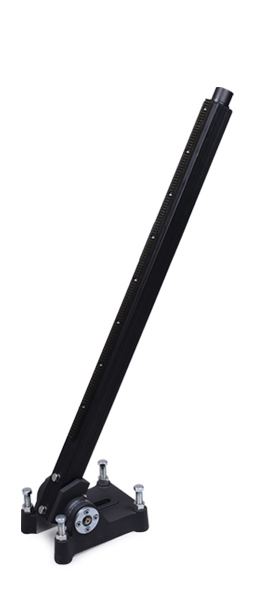

ANGLED
  • ANGLED
  • gear type angle adjustable
    base of maximum of
    120 degrees tilt

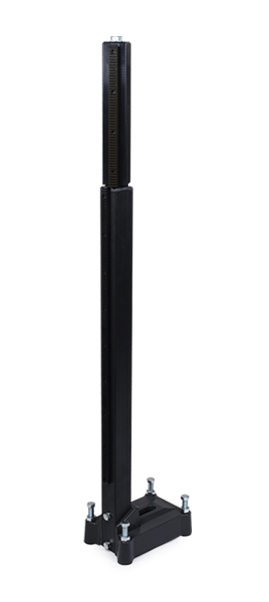

SWIVEL
  • SWIVEL
  • Extra sub column attached,
    which can be rotated
    360° for easier extraction of
    long cores

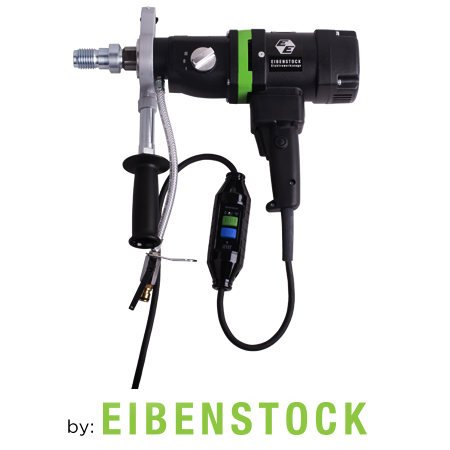

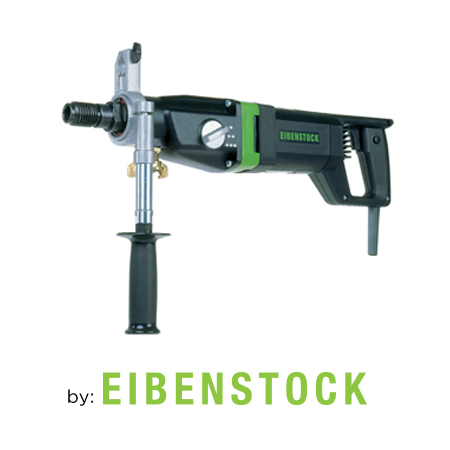

DRE4
DRE4
core drill
  • 3 speed 19.5 AMP hand-held core drill
  • Wet or dry diamond core drill
  • Water swivel and extraction port built into the spindle
  • Quick Change mount quickly switches from handheld to stand-mounted drilling
  • Drill stand adjustable up to 45 degrees
  • Includes drill bit connections 5/8"-11 UNC and 1-."-7 UNC
  • Part #: DRE4
  • + specifications >
    Power 19.5AMP/110V
    Max Drilling Diameter 6"
    Load Speed 1. Gear 3 1/4" - 6 3/8" 0-510 RPM
    2. Gear 1 3/4" - 3 1/4" 0-1150 RPM
    3. Gear 1/2" - 1 3/4" 0-2250 RPM
    Spindle Connection 5/8" x 11 UNC & 1 1/4" x 7 UNC
    Collar Diameter 60mm
    Carry Case Included Yes
    Weight 15 lbs.

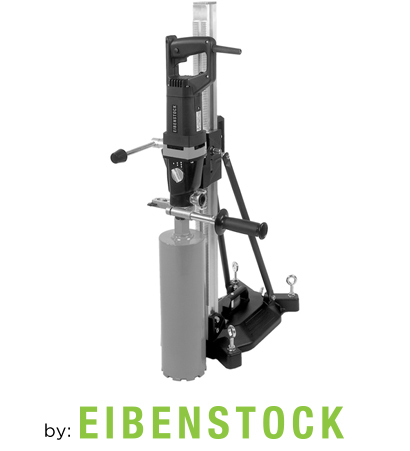

DRE4S
DRE4S
core drill stand
  • Lightweight, robust drill stand
  • Available vacuum base (Model DRE4-V) to handle all types of applications (optional, sold separately)
  • Stand adjustable up to 45 degrees for angle drilling
  • Available with mounting brackets and screws
  • Part #: DRE4-S
  • + specifications >
    Max Drilling Diameter 6"
    Motor Mount 60mm
    Drilling Angle 90-45 degrees
    Base Diameter 15-1/2" x 9"
    Anchor or Vacuum Base Combination
    Height 30"
    Weight 21 lbs. (stand only)

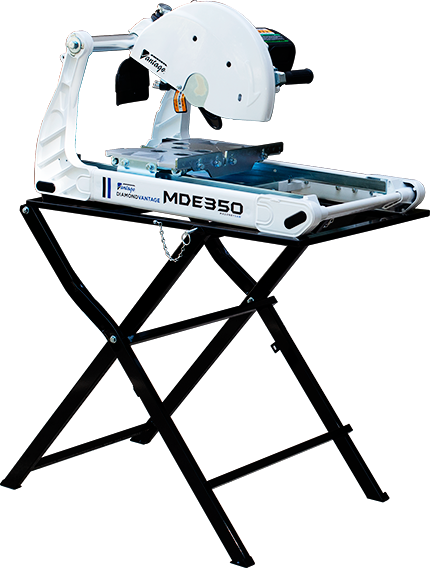

MDE350
MDE350
masonry saw
  • Diamond Vantage Dry Masonry Saw, MDE350, features a powerful 3HP motor and 14" blade capacity for fast cutting of brick/block and general purpose applications. The saw can also be used wet with our optional wet kit. The powerful dust collector kit ensures clean cutting, indoors or out.
  • Part #: MDE350
  • + specifications >
    Blade Capacity 14"
    Weight 75 lbs.
    Horse Power 3HP
    Arbor Size 1"
    RPM 3,600
    Max Cut Depth 5"
    Rip Cutting 16"
    Thermal Protection Equipped
    Motor 115V/60Hz
HGS-14S
HGS-14S
gas saw
  • SOLO® cut-off saws effortlessly cut their way through concrete, steel, asphalt, cast iron or stone. They also set a new benchmark because ergonomic features, technical details and the ease of maintenance are quite unique in this engine class. At the core of all SOLO® Cut-off saws is the modern 81 cc high performance two-stroke engine, developed and manufactured by SOLO® in Sindelfingen, Germany. The power rating of 5.44 HP is more than sufficient to cut the hardest materials. Amazingly, this engine produces very low emissions despite its high performance.
  • SOLO high performance 81 cc engine is equipped with a Nikasil®-coated cylinder and 2-ring piston.
  • Ergonomic advantages: optimum weight distribution, compact design, anti-vibration system with steel springs, rubber covered handles, tank caps with protection against over-tightening.
  • Electronic ignition system with auto choke.
  • Equipped for wet cutting with water hose adapter to connect the optional Pressurized Water Trolley (part # 8000150) or optional Heavy-Duty Pressurized Water Tank (part # 8900850).
  • Decompression valve for easier cold starts.
  • Part #: HGS-14S
  • + specifications >
    Engine 81 cc/Solo Single-cylinder two-stroke engine
    Fuel/Oil Mix Ratio 50:1
    Max. Power HP 5.44 HP
    Max Blade Capacity 14"
    Max Cut Depth 5"
    Arbor 20mm
    Max Spindle Speed 4,450 rpm
    Weight 23.15 lbs
    Height/Width 16.93"/10.52"
HGS-14SI
HGS-14SI
gas saw
  • SOLO® cut-off saws effortlessly cut their way through concrete, steel, asphalt, cast iron or stone. They also set a new benchmark because ergonomic features, technical details and the ease of maintenance are quite unique in this engine class. At the core of all SOLO® Cut-off saws is the modern 81 cc high performance two-stroke engine, developed and manufactured by SOLO® in Sindelfingen, Germany. The power rating of 5.44 HP is more than sufficient to cut the hardest materials. Amazingly, this engine produces very low emissions despite its high performance.
  • World's first Intelligent Lubrication system (iLube®). Oil is metered to the fuel by an electronically-controlled pump (881).
  • SOLO high performance 81 cc engine is equipped with a Nikasil®-coated cylinder and 2-ring piston.
  • Ergonomic advantages: optimum weight distribution, compact design, anti-vibration system with steel springs, rubber covered handles, tank caps with protection against over-tightening (green: oil tank on model 881).
  • Electronic ignition system with auto choke.
  • Equipped for wet cutting with water hose adapter to connect the optional Pressurized Water Trolley (part # 8000150) or optional Heavy-Duty Pressurized Water Tank (part # 8900850).
  • Decompression valve for easier cold starts.
  • Part #: HGS-14SI
  • + specifications >
    Engine 81 cc/Solo Single-cylinder two-stroke engine
    Oil Tank Capacity 0.32 liter
    Max. Power HP 5.44 HP
    Max Blade Capacity 14"
    Max Cut Depth 5"
    Arbor 20mm
    Max Spindle Speed 4,450 rpm
    Weight 23.15 lbs
    Height/Width 16.93"/10.52"
FG7500
FG7500
planetary grinder
  • The FG7500 7.5HP grinder is ideal for large residential and medium-sized commercial jobs. It features a planetary grinding system with 3 heads for maximum productivity on large-scale jobs. Unlike its competitors that use only one very expensive main belt, FG7500 7.5HP uses five automotive timing belts to relieve stress on the belt and to achieve a smoother running of the machine. Another advantage of using automotive timing belts is that users easily can purchase new belts at any auto parts store – saving time and money. The grinder is powered by a 7.5HP Siemens motor, and the enhanced overall motor speed (1800rpm) makes for superior polishing in the higher grits. It features ergonomic handles for easy maneuverability, and to make programming easier the handlebars have been equipped with upgraded controls. Another enhancement is wider and smoother wheels placed further apart for increased stability. The FG7500 also includes a new and improved inverter and a detachable water tank, adding flexibility for wet or dry grinding. Backed by our industry-leading 3 year/2,500 hour limited warranty*.
  • + specifications >
    Length 39.4"
    Width 25"
    Height 29.6"
    Weight 680 lbs.
    Motor Output 7.5 HP
    Grinding Head Size 24"
    # of plates 3
    Phases 1
    Power 220V
    # of Speeds Variable w/ Soft Start
FG5000
FG5000
planetary grinder
  • The FG5000 5HP grinder is ideal for large residential and medium-sized commercial jobs. It features a planetary grinding system with 3 heads for maximum productivity on large-scale jobs. Unlike its competitors that use only one very expensive main belt, FG5000 5HP uses five automotive timing belts to relieve stress on the belt and to achieve a smoother running of the machine. Another advantage of using automotive timing belts is that users easily can purchase new belts at any auto parts store – saving time and money. The grinder is powered by a 5HP Siemens motor, and the enhanced overall motor speed (1800rpm) makes for superior polishing in the higher grits. It features ergonomic handles for easy maneuverability, and to make programming easier the handlebars have been equipped with upgraded controls. Another enhancement is wider and smoother wheels placed further apart for increased stability. The FG7500 also includes a new and improved inverter and a detachable water tank, adding flexibility for wet or dry grinding. Backed by our industry-leading 3 year/2,500 hour limited warranty.*
  • + specifications >
    Length 38"
    Width 21"
    Height 26.4"
    Weight 454 lbs.
    Motor Output 5 HP
    Grinding Head Size 20"
    # of plates 3
    Phases 1
    Power 220V
    # of Speeds Variable w/ Soft Start
DC3300
DC3300
dust extractor
  • Diamond Vantage Dust Extractor, DC-3300, is to ensure a dust-free floor, a powerful, highly efficient 2 stage vacuum system that collects all sizes of dust particles and prevents clogging by depositing large grit particles into the first canister and the small to medium grit particles in the main canister.
  • + specifications >
    Width 22" (smaller unit) 37" (larger unit)
    Height 39" (smaller unit) 49" (larger unit)
    Weight 182 lbs. (net)
    Cubic Feet per Minute (CFM) 330
    Auto Pulse or Manual Shake Manual
    Power 110V/50Hz
    HEPA compatible
DC350LM
DC350LM
dust extractor
  • Introducing Diamond Vantage most powerful single-phase dust extractor, DC350LM. Three large, commercial-grade vacuum motors provide 330 CFM and 100"of water lift, which is plenty of power for small to mid-size floor grinders. The DC-350LM is equipped with a drop down dust collection system that has a separator built in to the bottom. The filters can be regular or Hepa, your choice. The DC-350LM is portable and easy to maneuver on job site floors. All steel construction with large wheels in back and small locking wheels in front. All accessories are included.
  • + specifications >
    Width 26"
    Height 66"
    Weight 152 lbs.
    Cubic Feet per Minute (CFM) 330
    Auto Pulse or Manual Shake Manual
    Power 110V/50Hz
    HEPA compatible
EG1000
EG1000
edge grinder
  • Diamond Vantage Edge Floor Grinder, EG-1000, machine is ergonomically designed and allows the user to grind in a upright position, helping to eliminate fatigue, backaches, and job site injuries. The most efficient edge grinder in the market.
  • Operates with 7" handheld grinder (optional)
  • Safer operating
  • Easily connects to a vacuum system
  • Easy transportation
  • 45 lbs frame weight
  • Equipped with headlight for operation in dim areas
  • Heavy Duty body construction
  • Control and apply pressure to the center of the tool with guide handle
  • Easy grinding to the edge. Front arm has multiple position pin to get into tight areas.
EG500
EG500
edge grinder
  • Diamond Vantage Edge Grinder, EG500, is a kneel down edge grinder that is very maneuverable. It's easy one hand operation reduces back ache and shoulder pain. The shroud is designed to not lose suction at any angle even against a wall.
DV HAND GRINDER
DV HAND GRINDER
  • Diamond Vantage Hand Grinder is a quality hand-held grinder designed specifically for concrete prep and coatings removal. 7" Optional Grinder (DV Hand Grinder) (Hand Grinder that attaches to frame) The heavy-duty design of the DV Hand Grinder provides solid performance when grinding for concrete preparation along walls, around protrusions, and those hard-to-access areas, and offers great dependability for removing epoxies and mastics when utilizing appropriate grinding disks and wheels.
  • + specifications >
    Length 19"
    Width 4.5"
    Height 5" without handle attached
    Weight 9 lbs. (net)
    Grinding Width 7"
    Production Capacity 150/200 sq. ft.
    Motor 6,600 RPM
    Voltage 120V, 1ø, 60Hz
    Amperage 15A
    Power Cord 6 ft. (1.8m)
    Dust Hose Connection 2"
